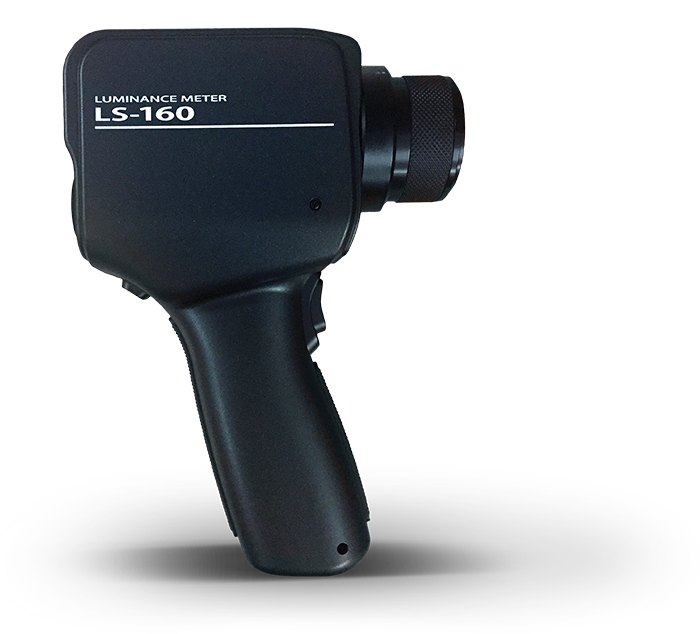

Konica Minolta LS-160 Luminance Meter
LS-160 (successor to the LS-110) is a highly accurate luminance meter that uses a newly designed sensor with a spectral response that more closely matches the V(λ) spectral luminous efficiency function of the human eye to provide measurement results that correlate well with visual evaluation. This spot luminance meter is small and compact, light and easy to hold, and runs off AA batteries, making it fully portable.
Features of this instrument include an optical system with single lens reflex (SLR) technology that will give you accurate targeting capabilities while being able to see at all times the specific measuring area in the viewfinder, even when measurements are being taken at very short distances. Extremely small areas can be measured, even down to 0.4mm in diameter (when a close-up lens is used). With these and other advanced functions, even those using the device for the first time will achieve highly accurate measurement results.

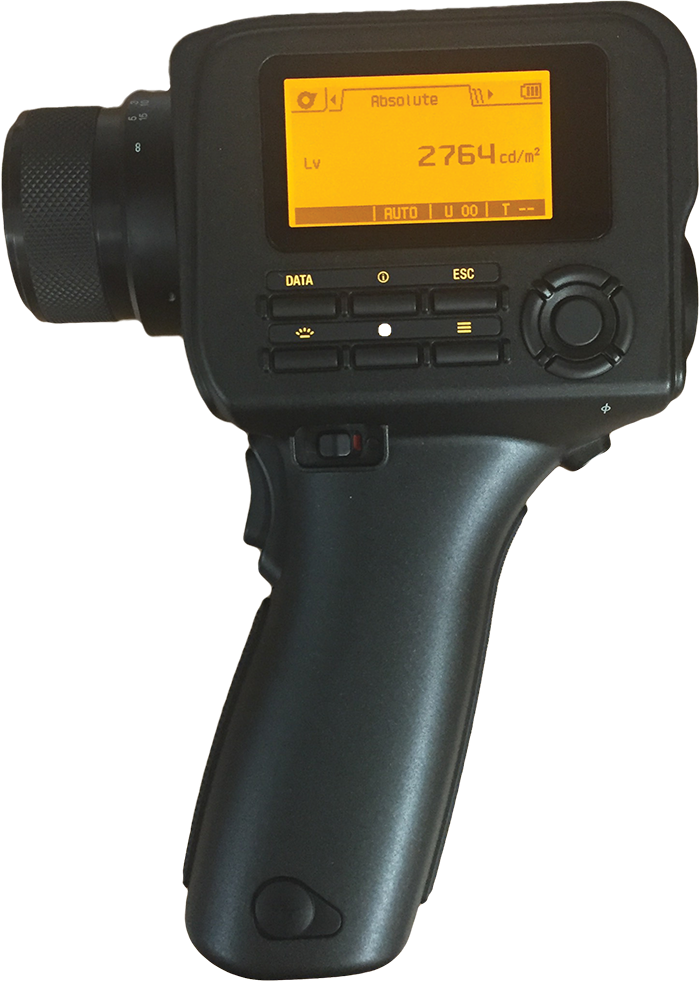

The clear backlit LCD screen shows the values of luminance measurements, and the values are also visible in the viewfinder. This means measuring tasks do not require moving the instrument from the eye yet still affording precise control of the object being measured. When measuring particularly bright light sources, comfort and safety are assured with the LS-160’s neutral density eyepiece filter. The automatic mode sets the measurement time according to the brightness of the target. In all measurement operations, the device’s pistol grip provides for a solid, secure hold.
With a range beginning at 0.01cd/m², this instrument can measure extremely dark light levels. Through color-correction and calibration functions, you’re able to choose a standard luminance, and then the instrument automatically corrects when variances are spotted in specified sources of light. The LS-160 included utility software allows the meter to be controlled from a PC via USB 2.0. Repeated interval measurements can be conducted for a specific number of times at specific intervals, measurement data can be displayed on graphs or lists, and data can be exported to spreadsheet applications. Optional close-up lenses allows for measurement of extremely small areas. Also, the optional illuminance adapter enables illuminance measurement as well.
Unit Price: USD9,999/pc, contact us for latest pricing.
Download Konica Minolta LS-160 Luminance Meter Brochure
Download Konica Minolta LS-160 Luminance Meter Manual
Features
- Eligible ISO 17025 Certification
- 1/3° acceptance angle
- Portable, lightweight, compact and battery powered
- SLR (Single Lens Reflex), precise targeting; shows exact area to measure
- Small diameter measurements (as small as 0.4mm)
- Backlit LCD and viewfinder displays; easy to focus on target
- Neutral density eyepiece filter allowing measurements of bright light sources
- Pistol grip enables user to stabilize the instrument with ease
- Measures low luminance (range starts at 0.01cd/m2)
- User calibration and color correction
- Includes Utility Software allows the instrument to be controlled from the PC via USB 2.0

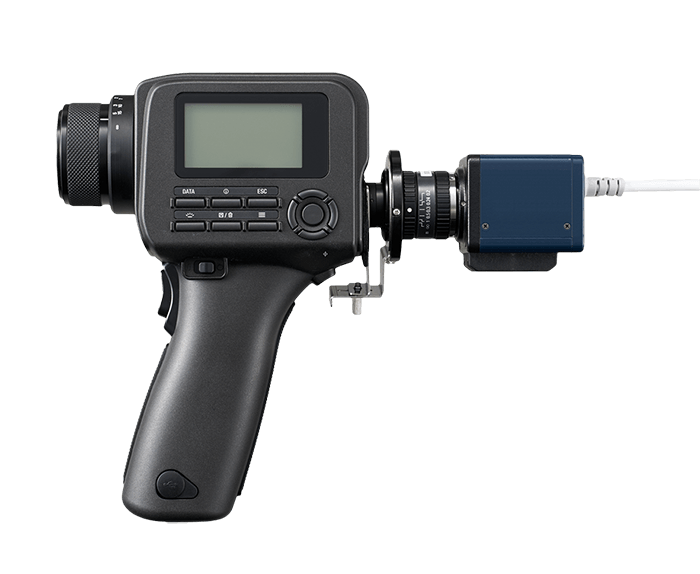

- Optional CCD camera adapter enables viewfinder to be monitored from a distance
Specifications
| Model | LS-160 Luminance Meter |
|---|---|
| Measuring angle | 1/3° |
| Optical system | SLR viewing system, f = 85 mm F2.8 |
| Angle of view | 9° (with diopter adjustment) |
| Relative spectral responsivity | Closely matches spectral luminous efficiency (V (Λ)) |
| Application standard | (N/A) |
| Minimum measuring area (diameter) | 4.5 mm (0.4 mm when close-up lens is used) |
| Minimum measuring distance (From the measuring distance reference plane) | 1,012 mm (213 mm when close-up lens is used) |
| Measurement mode | Instantaneous value, maximum/minimum value, luminance difference (Δ)/luminance ratio (%) |
| Measurement time | AUTO: 0.7 to 4.3 seconds Manual: 0.7 to 7.1 seconds |
| Luminance unit | cd/m2 or fL |
| Luminance range | 0.01 to 9,999,000 cd/m2 |
| Accuracy*1 | +/-2% +/- 2 digits (10 cd/m2 or less) +/-2% +/- 1 digit (10 cd/m2 or more) |
| Repeatability*1 | 0.2% + 1 digit |
| Calibration standard | Konica Minolta standard/user-specified standard switchable |
| User calibration channels | 10 channels |
| Data memory | 1,000 data |
| External display (Number of significant digits) |
(Luminance) 4 digits (Chromaticity) 4 digits |
| Internal display (Number of significant digits) |
(Luminance) 4 digits |
| Interface | USB 2.0 |
| Power | AA-size batteries (x2), USB bus power, or optional AC adapter |
| Current consumption | When viewfinder display is lit: 70 mA average |
| Operation temperature/humidity range | 0 to 40°C, relative humidity of 85% or less (at 35°C) |
| Storage temperature/humidity range | 0 to 45°C, relative humidity of 85% or less (at 35°C) |
| Size | 71x214x154 mm |
| Weight | 850 g (without batteries) |
| Standard accessories | Lens Cap Eyepiece ND Filter Eyepiece Cap AA-size batteries (x2) Hard Case CS-A12 Wrist Strap CS-A13 USB Cable T-A15 Data Management Software CS-S20 |
| Optimal accessories | Close-Up Lens No. 153/135/122/110 CCD Camera Adapter CS-A14 Illuminance Adapter CS-A15 AC Adapter AC-A305J/L/M |
| Specifications are subject to change without notice. | |
| *1 Standard Illuminant A; Standard measurement distance; Measurement time setting: Auto | |
