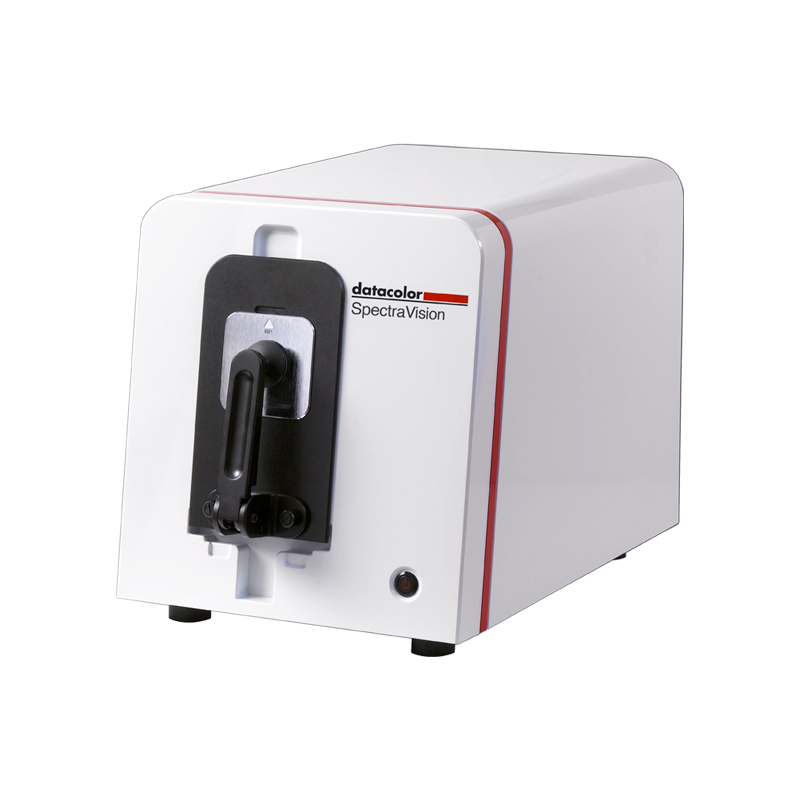

Datacolor SpectraVision
Datacolor SpectraVision enables retailers and their suppliers to objectively measure and digitally communicate the color of “the unmeasurables – prints, trims, yarns, laces, etc.” thereby saving costs and shortening the time from concept to consumer.
This solution combines an advanced hyperspectral spectrophotometer with best-in-class quality control software to measure, analyze, report, communicate, and visualize accurate color results.
Designed for: the textile industry to measure the colors of the unmeasurables – prints, trims, yarns, laces, etc.
Unit Price: USD9,999/pc, contact us for latest pricing.
Download Datacolor SpectraVision Brochure
Download Datacolor SpectraVision Manual
Features
- Improves product quality by removing subjectivity from the color measurement process
- Ensures uniform assessment throughout the supply chain with high inter instrument agreement
- Allows the use of existing measurement data with backward compatibility to Datacolor benchtop instruments
- Decreases color approval steps and the number of iterations/strikeoffs required
- Lowers the cost associated with shipment and maintenance of color standards by digitally storing the data
- Reduces the need for physical sample shipments
- Efficient color management of components in a garment or in coordinating sets
- Expedites decision making with digital communication of colorimetric and image data
- Shortens approval cycle by enabling color evaluation at the point of production
Specifications
| Model | Datacolor SpectraVision |
| Spectral Analyzer | Proprietary hyperspectral imaging assembly with 31 narrow bands covering 400 to 700 nm. The imaging is with a scientific 90 db camera with a sCMOS sensor. |
| Measuring Geometry | Diffuse illumination, 8º viewing in conformance with CIE publication No. 15.2 Colorimetry. |
| Illumination Source | Pulsed xenon, filtered to provide D65 illumination including UV component. |
| Sphere | Diameter 152 mm / 6.0 inches, Barium coated |
| Specular Port | Automated specular included or specular excluded |
| Wavelength Range | 400 – 700 nm |
| Photometric Range | 0 to 200% |
| Reporting Interval | 10 nm |
| Effective Bandwidth | 5 nm |
| 20 Read Repeatability on White Tile Using Two Flashes (CIELAB) | 0.03 dE (max) |
| Inter-instrument Agreement—Reflectance Measurements* (CIEL*a*b*) | 0.25 (max)* |
| 0.15 (avg)* | |
| Automated, adjustable UV Calibration | Yes |
| UV Cutoff Filters | 400 nm; 420 nm; 460 nm |
| Aperture Configuration | Square. 25 mm illuminated/ 22.7 mm viewed |
| Image Acquisition Time | 35 sec |
| Image resolution | 821 x 821 |
| Effective pixel size | 27.6 micrometers |
| Sample Viewing Camera | Yes |
| Vertical Mount | No |
| Transmittance | No |
| Output | QTX2, Reflectance Hypercube |
| Operating Software | Tools SV |
| ITEM | DESCRIPTION |
| Operating Environment | Temperature: 10°C to 35°C |
| Recommended Temperature: 23°C +/- 2°C | |
| Maximum Relative Humidity: 20%-85% non-condensing | |
| Recommended Relative Humidity: 50% +/-15% non-condensing | |
| Altitude: Up to 2,000 meters | |
| Do not store above 140°F (60°C) | |
| Indoor Use | |
| Do not crush, short circuit, mutilate, reverse polarity, disassemble, or dispose. In fire, might cause burns or release toxic materials. | |
| Input Power Requirements | Input Voltage: 100-240VAC |
| Frequency: 50/60 Hz | |
| 150 VA Peak | |
| Instrument Dimensions | L 19.9” (50.6 cm) front to back L 21.71” (55.14 cm) sample arm to back H 15.17” x W 12.3” (38.54 cm x 31.3 cm) Weight: 70 lbs (31.75kg) |
| Unique design allowing imaging both the reference and sample channels at the same time. | |
| Instrument Type | Barium coated sphere with xenon flash lamp |
| Lens | 50 mm, fixed focus |
