Datacolor 200R & 200M Spectrophotometers
Datacolor 200R & 200M offers affordable and easy-to-use color measurement for a wide range of applications. It features a compact, modern design with simplified installation and a Service Indicator LED for additional confidence in your color measurements. The Datacolor 200 Family color measurement data is compatible with other Datacolor sphere instruments. Specify, formulate and control critical color.

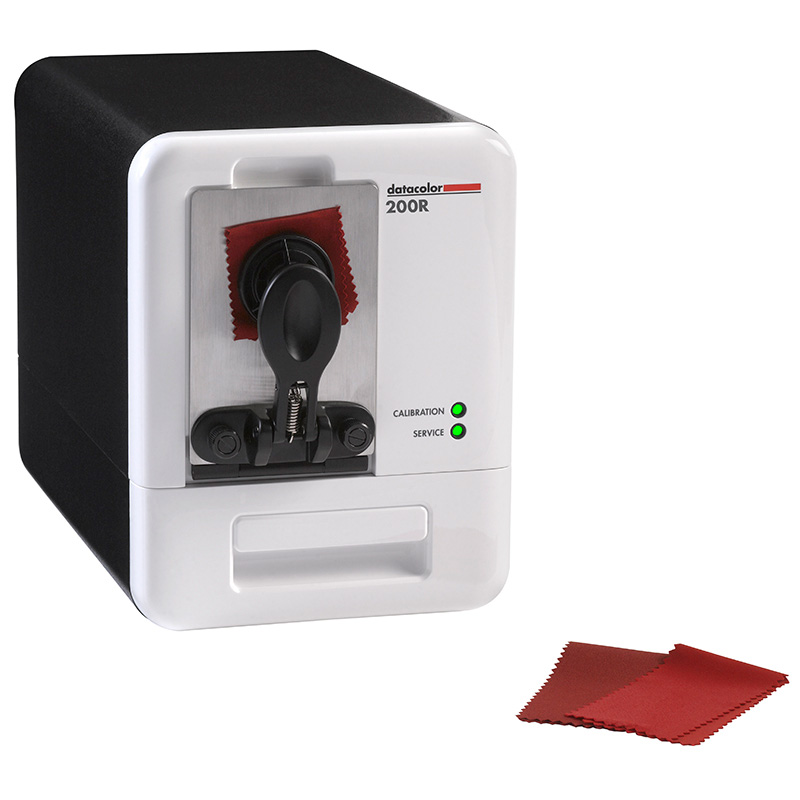

Datacolor 200R offers reliable and easy to use color measurement for retail paint applications.

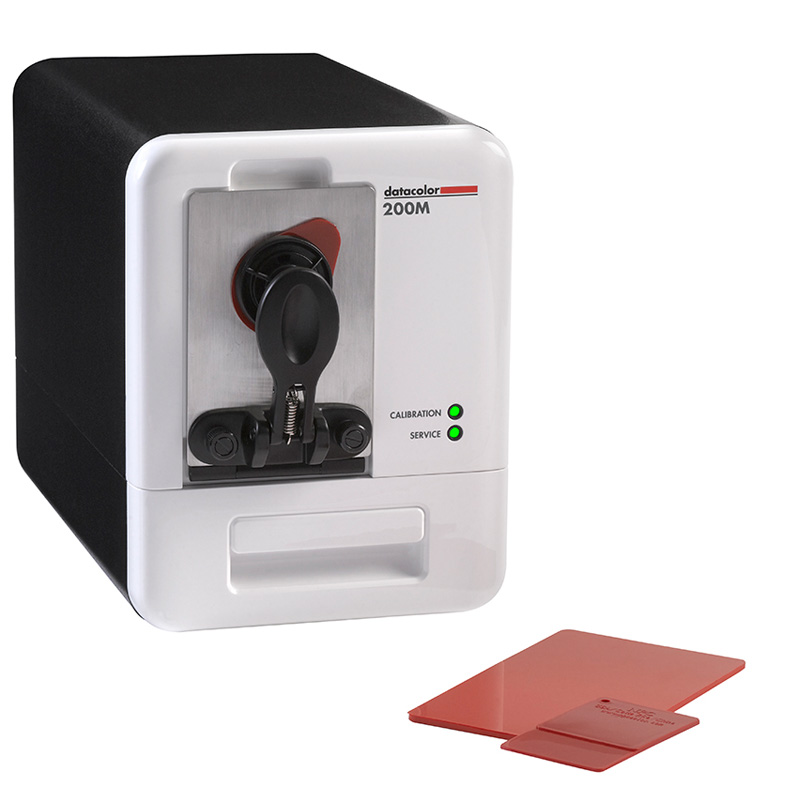

Datacolor 200M is an affordable benchtop spectrophotometer that enables Textiles, Paint & Coatings, and Plastics manufacturers to meet their formulation and product quality goals by providing precise color measurements.
Unit Price: USD9,999/pc, contact us for latest pricing.
Download Datacolor 200R & 200M Brochure
Features
- The Datacolor 200 Family utilizes Datacolor’s proprietary SP2000 technology, capturing the true spectral fingerprint of any color at the highest possible accuracy for either retail paint or industrial textile, paint & coatings, or plastics applications.

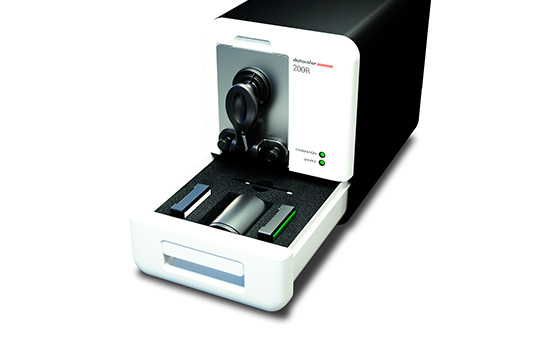

- Easy to Use, Easy to Maintain. Sleek new modern design includes a compact footprint and an integrated drawer that holds the black trap, calibration tiles, and the USB memory stick.

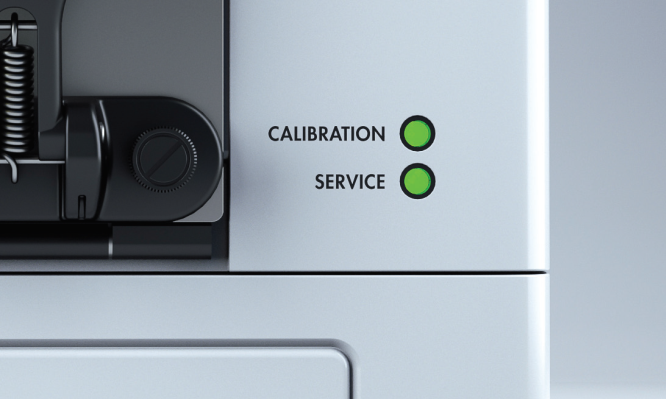

- Easy instrument installation with all required calibration data loaded at the factory.The new Service Indicator LED alerts you to deviations in your calibration results indicating that your instrument may require service.
Specifications
| Technical Specifications | Description | |
|---|---|---|
| Measuring Geometry | Dual Beam d/8° spectrophotometer | |
| Specular Port | SCI/SCE for automatic gloss compensation | |
| Illumination Source | Pulsed Xenon filtered to approximate D65 | |
| Wavelength Range | 400 nm – 700 nm | |
| Reporting Interval | 10 nm | |
| Photometric Range | 0 to 200% | |
| Spectral Analyzer | Proprietary SP2000 analyzer with dual 256 element diode array | |
| Color Repeatability | 0.05 CIELAB ΔE* max on white ceramic tile | |
| Inter-Instrument Agreement | Datacolor 200R 0.2 CIELAB ΔE* avg. of 12 BCRA tiles |
Datacolor 200M 0.5 CIELAB ΔE* max of 12 BCRA tiles 0.2 CIELAB ΔE* avg. of 12 BCRA tiles |
| Single Aperture Models | LAV (22 mm), SAV (9 mm), USAV (6.5 mm) | |
| Data Interface | Secure USB or RS232 (RS232 cable optional) | |
| Operating Environment | 5° to 40°C up to 85% RH, non-condensing | |
| Physical Specifications | Description | |
| Weight | 15 lbs. (6.8 Kg) | |
| Dimensions | 6.8” Wide X 8.8” Tall X 12.9” Deep 17.2 cm x 22.3 cm x 32.7 cm |
|
