YS3010-3060 Spectrophotometer
YS3010-3060 Spectrophotometer can easily achieve color measurement, designed for industries of plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
8mm, 4mm and customized aperture are available.
YS3060 UV Spectrophotometer: Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE, Bluetooth Comm.
YS3020 Spectrophotometer: Multi-illuminants, Customizable Aperture, SCI&SCE, Bluetooth Comm.
YS3010 Spectrophotometer: 4 Illuminants, 8mm Aperture, SCI&SCE.
YS30 serials comply with CIE No.15，GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7. Switch between SCI and SCE mode makes them widely use in many applications. It has high accuracy 0.06 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.
Unit Price: USD9,999/pc, contact us for latest pricing.
Download YS-3010 Spectrophotometer Brochure
Download YS-3020 Spectrophotometer Brochure
Download YS-3060 Spectrophotometer Brochure
Features
- Perfect combination of beautiful appearance and the human body mechanics structural design.
- D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil.
- Use long life and low power consumption combined LED light source.
- Switchable 8mm/4mm aperture, support both SCI and SCE at the same time.
- Measure sample spectra, accurate Lab data , can be used in color matching and accurate color measurement.
- High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor.
- LCD displays measurement results clearly and reversing in direction according to how it's held so that data is always facing upright to the user
- Its portable and lightweight powered by batteries or AC adapter
- Simple, straightforward navigation wheel with options easily understood by new users
- Large capacity storage space, over 20,000 measurement data.
- Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement. Camera Locating Function, better position.

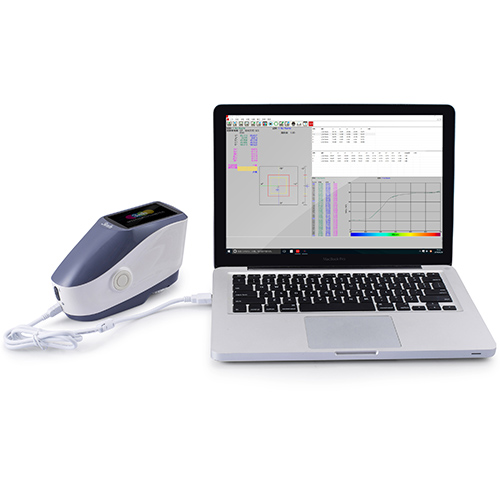

- PC software has a powerful function extension.
Specifications
| Model | YS3060 | YS3020 | YS3010 |
|---|---|---|---|
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) | ||
| Integrating Sphere Size | 48mm | ||
| Light Source | Combined LED Light, UV Light | Combined LED Light | |
| Spectrophotometric Mode | Concave Grating | ||
| Sensor | 256 Image Element Double Array CMOS Image Sensor | ||
| Wavelength Range | 400-700nm | ||
| Wavelength Interval | 10nm | ||
| Semiband Width | 10nm | ||
| Measured Reflectance Range | 0-200% | ||
| Measuring Aperture | Dual Aperture: 10mm/8mm & 5mm/4mm | Customized Aperture: 8mm/4mm/1×3mm | Single Aperture: 8mm/10mm |
| Specular Component | SCI&SCE | ||
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB | ||
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) | ||
| Other Colorimetric Index | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness | ||
| Observer Angle | 2°/10° | ||
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 | D65, A, C, D50, D55, D75, F2, F7, F11 | D65, A, C, D50 |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset | ||
| Measuring Time | 2.6s | ||
| Repeatability | MAV/SCI: ΔE*≤0.03 | MAV/SCI: ΔE*≤0.05 | MAV/SCI: ΔE*≤0.06 |
| Inter-instrument Error | MAV/SCI: ΔE*≤0.15 | MAV/SCI: ΔE*≤0.2 | MAV/SCI: ΔE*≤0.4 |
| Measurement Mode | Single Measurement, Average Measurement | ||
| Locating Method | Camera View Finder Locating | ||
| Battery | Li-ion battery. 5000 measurements within 8 hours | ||
| Dimension | L*W*H=184*77*105mm | ||
| Weight | 600g | ||
| Illuminant Life Span | 5 years, more than 3 million times measurements | ||
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen | ||
| Data Port | USB, Bluetooth 4.0 | USB | |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs | ||
| Language | English, Chinese | ||
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m | ||
| Storage Environment | -20~50℃, 0~85%RH (no condensing) | ||

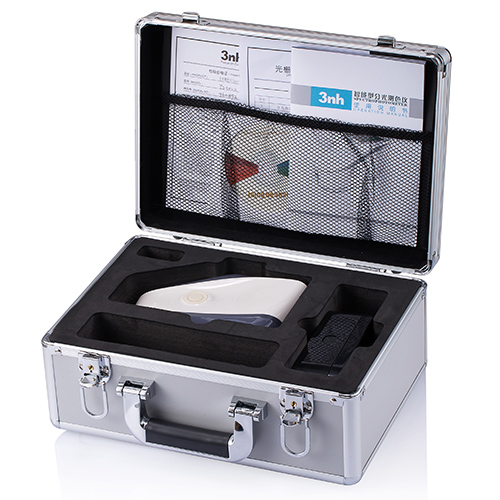

| Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover | ||
| Optional Accessory | Micro Printer, Powder Test Box | ||
| Notes: The specifications are subject to change without notice. | |||
