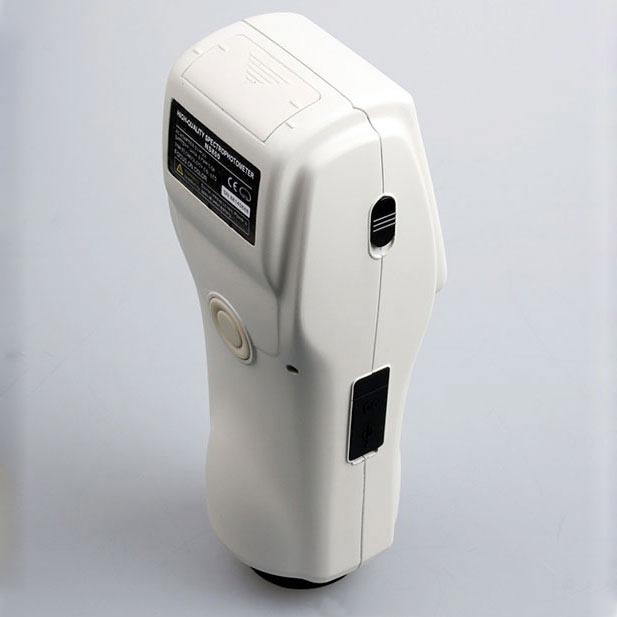

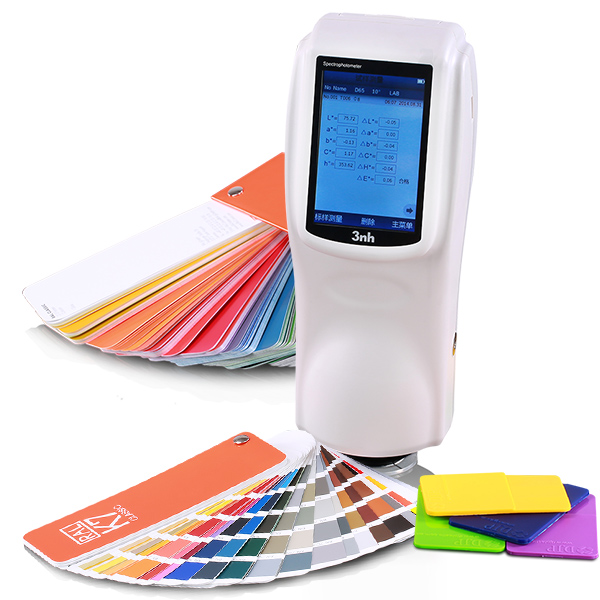

NS800-810 Spectrophotometer
NS800-810 Spectrophotometer is widely used in plastic, electronic, painting, coating, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS810 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
Unit Price: USD9,999/pc, contact us for latest pricing.
Features
- Pass/fail assessments immediately determines if the sample meets the defined standard or target color
- Numerical Gloss Control measures level of relative gloss for more control of a sample's appearance
- Conveniently measures SCE and SCI simultaneously for more consistent readings and to accommodate the surface conditions of each sample
- Illuminated viewfinder conveniently illuminates where the instrument is positioned
- LCD displays measurement results clearly and reversing in direction according to how it's held so that data is always facing upright to the user
- Its portable and lightweight powered by batteries or AC adapter
- Simple, straightforward navigation wheel with options easily understood by new users
- PC software has a powerful function extension.
Specifications
| Model | NS810 |
|---|---|
| Illumination/observation system | d/8 (diffused illumination, 8-degree viewing angle) Conforms to CIE No.15, GB/T 3978. |
| Integrating sphere Size | Φ58mm |
| Light Source | Combined LED sources |
| Sensor | Silicon photodiode array |
| Wavelength range | 400~700nm |
| Wavelength pitch | 10nm |
| Reflectance range | 0~200% |
| Measuring Aperture | Φ8mm |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV，LAB&WI&YI |
| Color difference Formula |
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*cmc(l:c),CIE2000 ΔE*00，ΔE(h) |
| Other Chromaticity Data |
WI(ASTM E313，CIE/ISO,AATCC, Hunter)， YI(ASTM D1925，ASTM 313), TI(ASTM E313，CIE/ISO), Metamerism Index (Mt), Strength Color Stain, Color Fastness |
| Observer | 2°/10° |
| Illuminant |
D65，A, C, D50，D55，D75，F1，F2(CWF)，F3，F4，F5，F6，F7(DLF)，F8，F9， F10(TPL5)F11(TL84), F12(TL83/U30) |
| Display Data |
Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, color index setting(ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting |
| Measurement Time | 1.2s |
| Repeatability |
Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
| Inter Instrument Agreement | Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Dimension | L*W*H=90*77*230mm |
| Weight | 600g |
| Battery | Li-ion battery. 2800 times within 8 hours. |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Display Screen | TFT 3.5inch, Capacitive Touch Screen |
| Interface | USB/RS-232 |
| Data Memory | 1000 Standards, 15000 Samples |
| Operating Temperature | 0~40℃（32~104°F） |
| Storage temperature | -20~50℃（-4~122°F） |
| Standard Accessory |
Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap |
| Optional Accessory | Micro Printer, Powder Test Box |
| Notes | The specifications are subject to change without notice. |
