Konica Minolta CM-2600d Spectrophotometer
CM-2600d Spectrophotometer is a handheld, portable measurement instrument designed to evaluate the color, relative gloss, and UV characteristics of samples very small to large in size, particularly with flat surfaces. This high performance, precise spectrophotometer enables users to evaluate, reproduce, and control the color and appearance of objects in a more effective, streamlined process. Its advanced optical design and features help to establish and meet color quality standards more efficiently, maintain consistency in each batch of material, and communicate color seamlessly internally and throughout the supply chain. This makes the CM-2600d suited for each stage of the manufacturing process, including R&D analysis, quality control inspections, and process control procedures.
The CM-2600d Spectrophotometer is compatible with SpectraMagic NX software to record measurements and provide a more comprehensive color analysis.
Unit Price: USD9,999/pc, contact us for latest pricing.
Download Konica Minolta CM-2600d Brochure
Download Konica Minolta CM-2600d Manual
Features
- Adjustable aperture switches between 3mm and 8mm
- Tight inter-instrument agreement measures consistently with other instruments of the same model, allowing color values and specifications to be communicated, shared, and coordinated seamlessly throughout the supply chain
- Pass/fail assessments immediately determines if the sample meets the defined standard or target color
- Numerical Gloss Control measures level of relative gloss for more control of a sample’s appearance
- Conveniently measures SCE and SCI simultaneously for more consistent readings and to accommodate the surface conditions of each sample
- Numerical UV Control performs measurements with and without UV simultaneously for more control of a sample’s appearance, particularly with optical brighteners
- Conveniently illuminates where the instrument is pointing

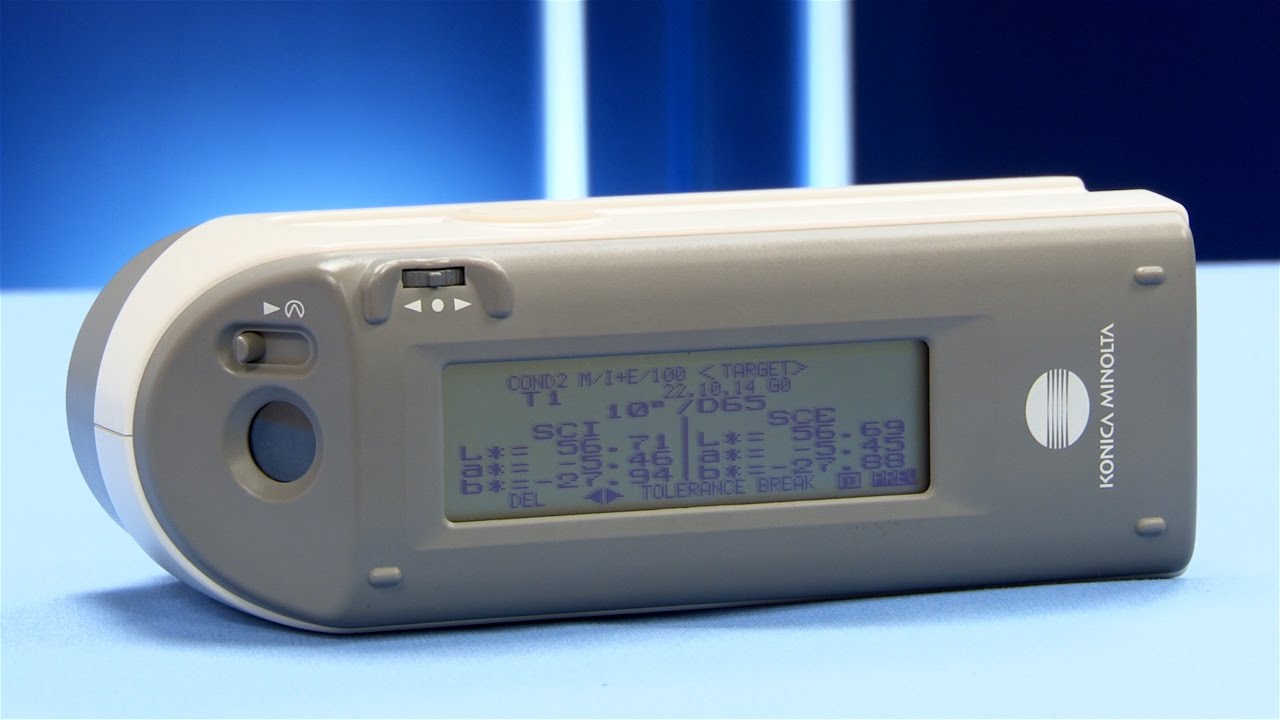

- LCD displays measurement results clearly and reversing in direction according to how it’s held so that data is always facing upright to the user
- Portable, handheld, lightweight design powered by batteries or AC adapter
- Simple, straightforward navigation wheel with options easily understood by new users
- Six language options -English, Spanish, French, German, Italian, and Japanese
- Integrates with SpectraMagic NX software to record measurements and provide a more comprehensive color analysis for color quality control
Specifications
| Model | CM-2600d |
|---|---|
| Model | CM-2600d |
| Illumination / observation system | d/8° (diffuse illumination, 8-degree viewing ), equipped with simultaneous measurement of SCI (specular component included)/SCE (specular component excluded) Conforms to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7 and JIS Z8722 Condition C standard. |
| Size of Integrating Sphere | Φ 52mm |
| Detector | Silicon photodiode array (dual 40 elements) |
| Spectral separation device | Diffraction grating |
| Wavelength range | 360nm to 740nm |
| Wavelength pitch | 10nm |
| Half bandwidth | Approx. 10nm |
| Reflectance range | 0 to 175%, resolution: 0.01% |
| Light source | 3 pulsed xenon lamps (2 xon lamps forCM-2500 d) |
| Measurement time | Approx. 1.5 seconds (approx. 2 seconds for fluorescent measurement) |
| Minimum interval between measurements | 3 seconds for SCI/SCE (4 seconds for fluorescent measurement) (simultaneous evaluation of SCI/SCE is possible by a single measurement) |

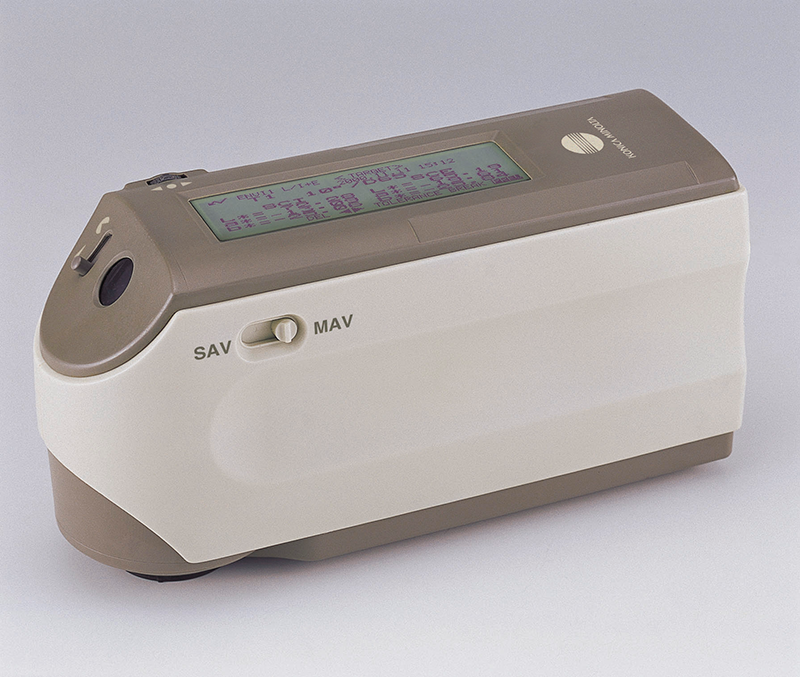

| Measurement/Illumination area | MAV: Φ8mm / Φ 11 mm SAV: Φ 3mm/ Φ 6mm (Selectable between MAV and SAV) (Only MAV is available for CM-2500d) |
| Repeatability | (Standard deviation) Spectral Reflectance: within 0.1% (360 to 380nm within 0.2%) Chromaticity Value : ΔE*ab 0.04(When a white calibration plate is measured 30 times at 10-second intervals after white calibration) |
| Inter instrument agreement | ΔE*ab within 0.2 (MAV/SCI) Average for 12BCRA Series II color tiles compared to values measured with master body. |
| UV adjustment | Instantaneous numerical adjustment (no mechanical adjustment required) With UV400nm cut filter |
| Measurement mode | Single measurement/automatic averaging of multiple measurements(auto mode: 3, 5, 8 times/manual mode) |
| Interface | Output: RS-232C serial signals via RJ45 connector; USB 2.0 communication possible when using included USB-Serial Converter Cable IF-A24 |
| Observer | 2/10° (CIE 1931/2°,CIE 1964/10°) |
| Illuminant | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 (simultaneous evaluation is possible using two light sources) |
| Outputs | Spectral value/graph, colorimetric value, color difference value/graph, PASS / FAIL result, relativity gloss value |
| Data Memory | 1700 pieces of data (as SCI/SCE 1 data) * 700 pieces of data in the defined in COND mode. *Total of the sample data for the COND and TASK modes and color difference target data |
| Battery performance | Alkaline manganese:approx. 1000 measurements |
| Display data | Spectral value/graph, colorimetric value, color difference value/graph, PASS/FAIL result |
| Color space / colorimetric data | L*a*b*, L*C*h, CMC (1:1), CMC (2:1), CIE94, Hunter Lab, Yxy, Munsell, XYZ, MI, WI (ASTM E313), YI (ASTM E313/ASTM D1925), ISO Brightness (ISO 2470), Density statusA /T, WI/Tint (CIE/Ganz), CIE00 |
| Tolerance display | Tolerance for color difference (both box and eliptical tolerances can be set) |
| Power source | 4 AA-size battery or AC adapter |
| Size (WxHxD) | 69 x 96 x 193mm |
| Weight | Approx. 670g (without batteries) |
| Operating temperature / humidity range (*1) | 5 to 40°C, relative humidity 80% or less (at 35°C) with no condensation |
| Storage temperature/humidity range | 0 to 45°C, relative humidity 80% or (at 35°C) with no condensation |

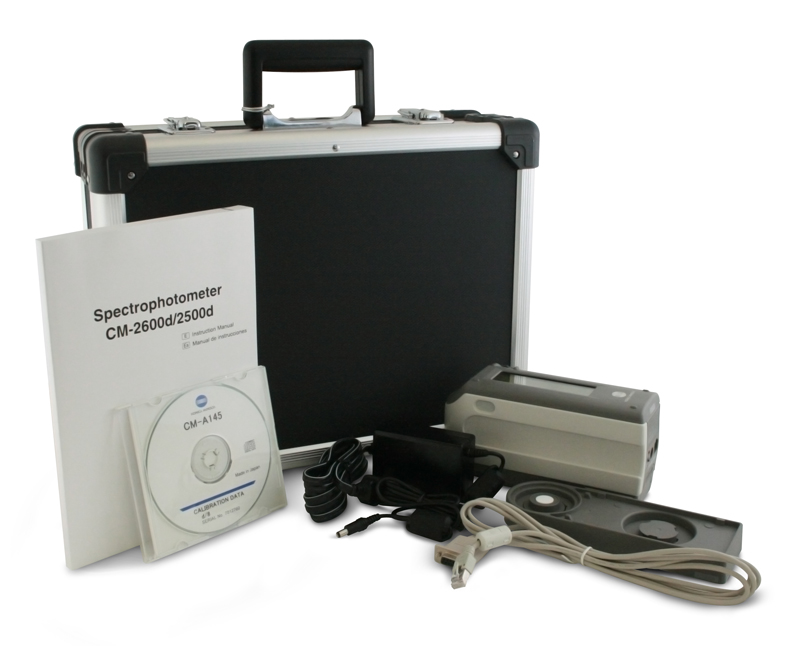

| Standard accessories | White calibration plate, Target mask Φ8mm, Target mask Φ3mm , RS-232C cable, AC adapter,AA-size battery (x4) |
| Optional Accessories | Hard case, Dust cover set, Dust cover, SpectraMagicTM NX (software), Zero calibration box |
